FLAT TOP

Flat Tops

Check Out Our
Flat Top's Brochure

Get

A Quote

Tray Heights

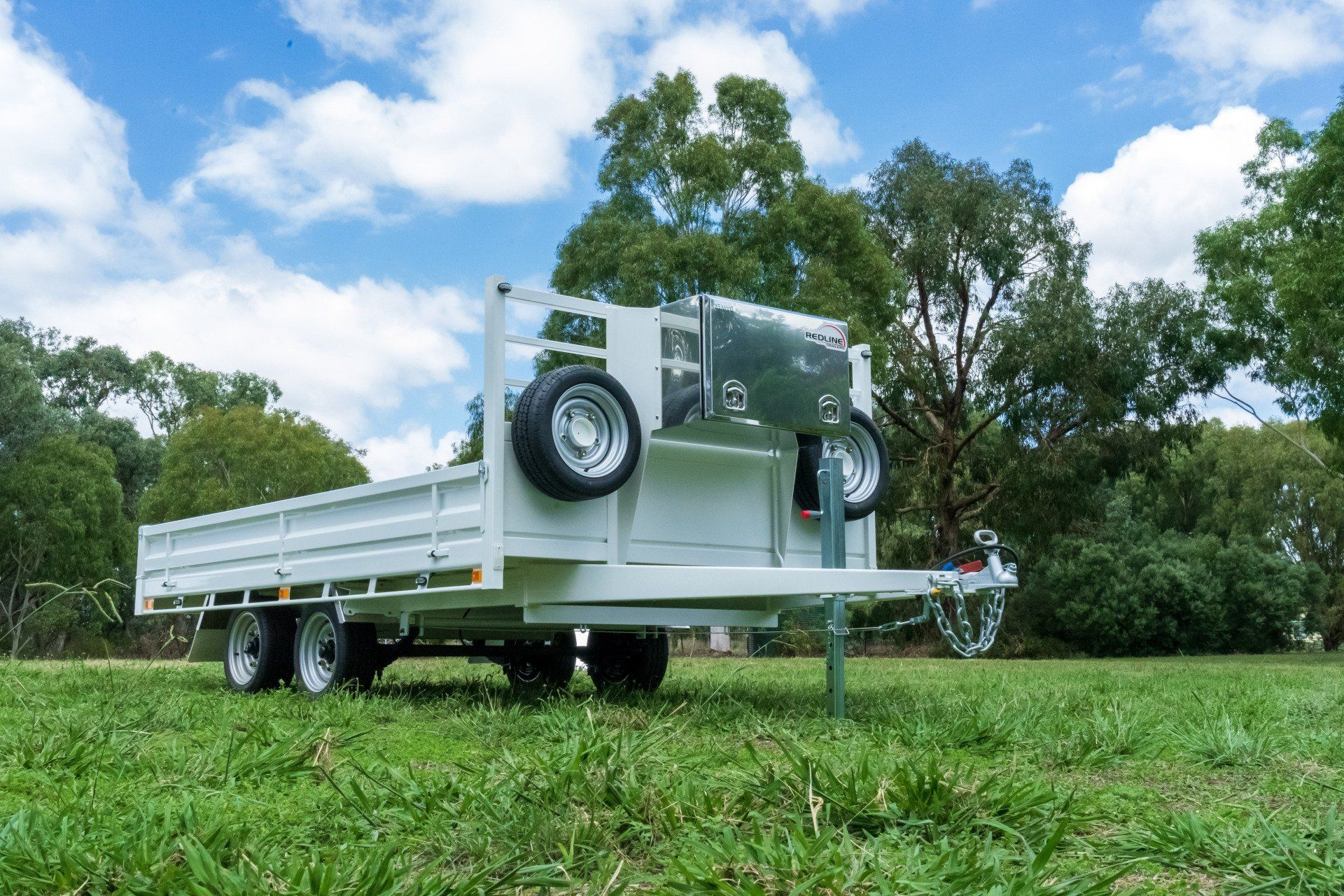

600 Ft 625mm: 6 Stud Land Rover wheels & 195/50 R13 Tyres(NEW) Stock, Machines
& Pick up fronts (only available on 4.8m FT)
750 Ft 750mm: 6 Stud Land Cruise wheels & 225/70 R15 tyres: (NEW) Versatile unit

900 Ft 900mm: 6 Stud Land Cruiser wheels & 10R15 tyres: (NEW) When you need clearance
Button
Tray Sizes

Available Sizes include:
3.0m x 2.0m
3.6m x 2.0m
4.8m x 2.0m
4.8m x 2.35m
Button
Capacities

Our Flat tops have an all up trailer capacity of 3.0T - 4.5T

.

Button

Standard Features

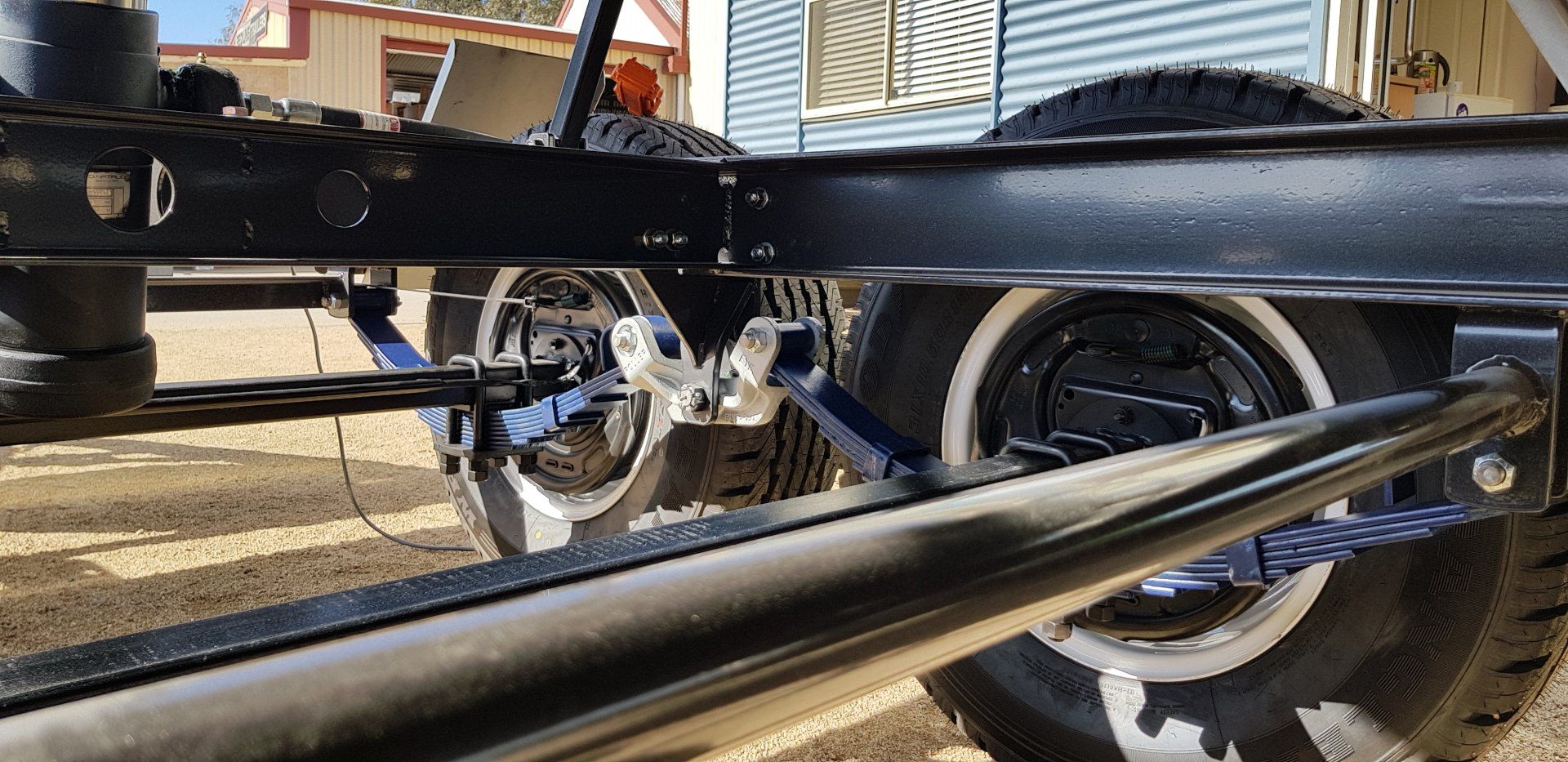

Rocker Roller Suspension

(60mm wide, grease able) Long life, load sharing suspension
With Hardened Pins
Button

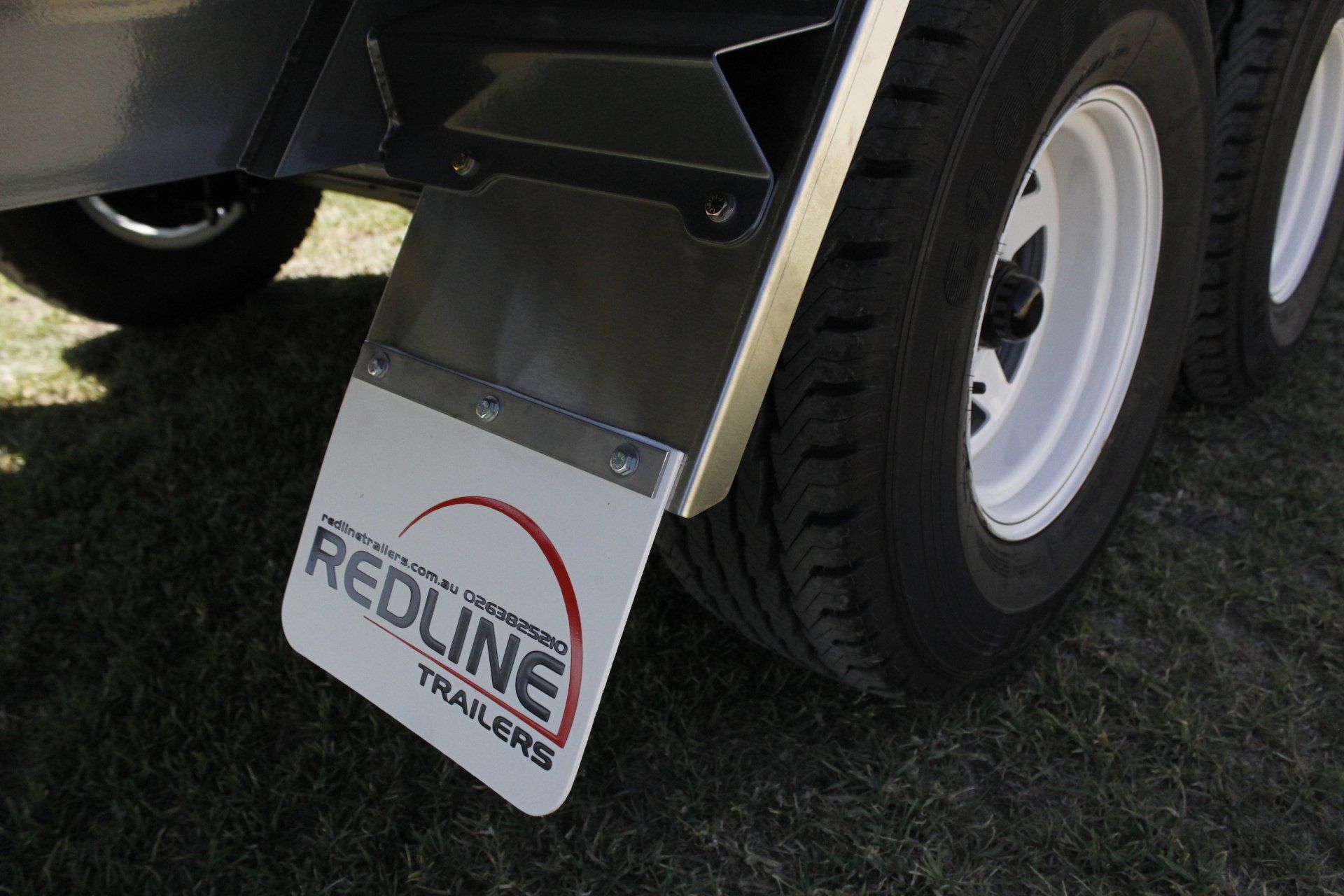

Stainless Steel Mud guards

Stainless steel mudguards: No more stone chips
Button
Powder Coating

High gloss POWDER COAT finish with Zinc Polymer rust preventative undercoat: High gloss, durable finish
Button

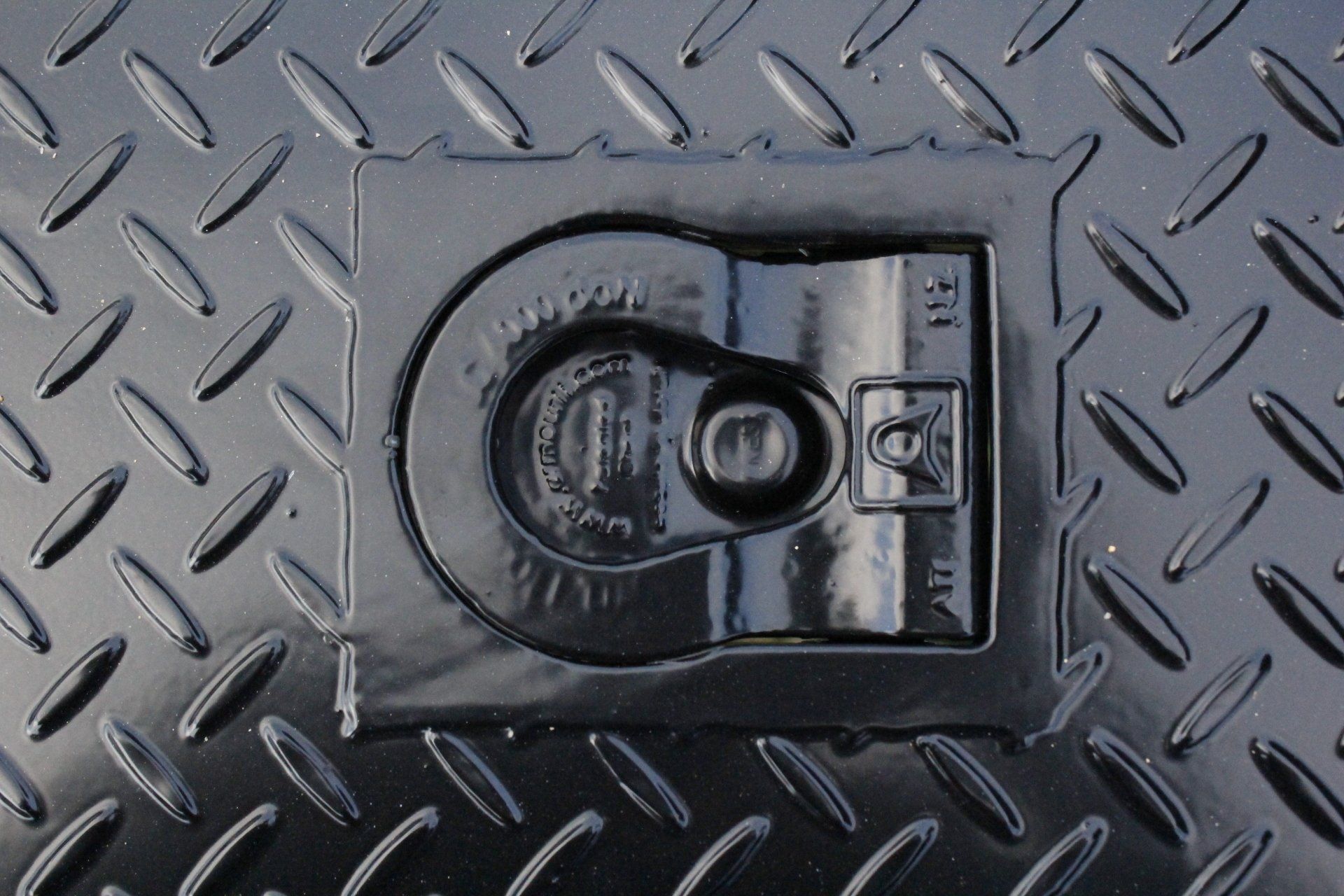

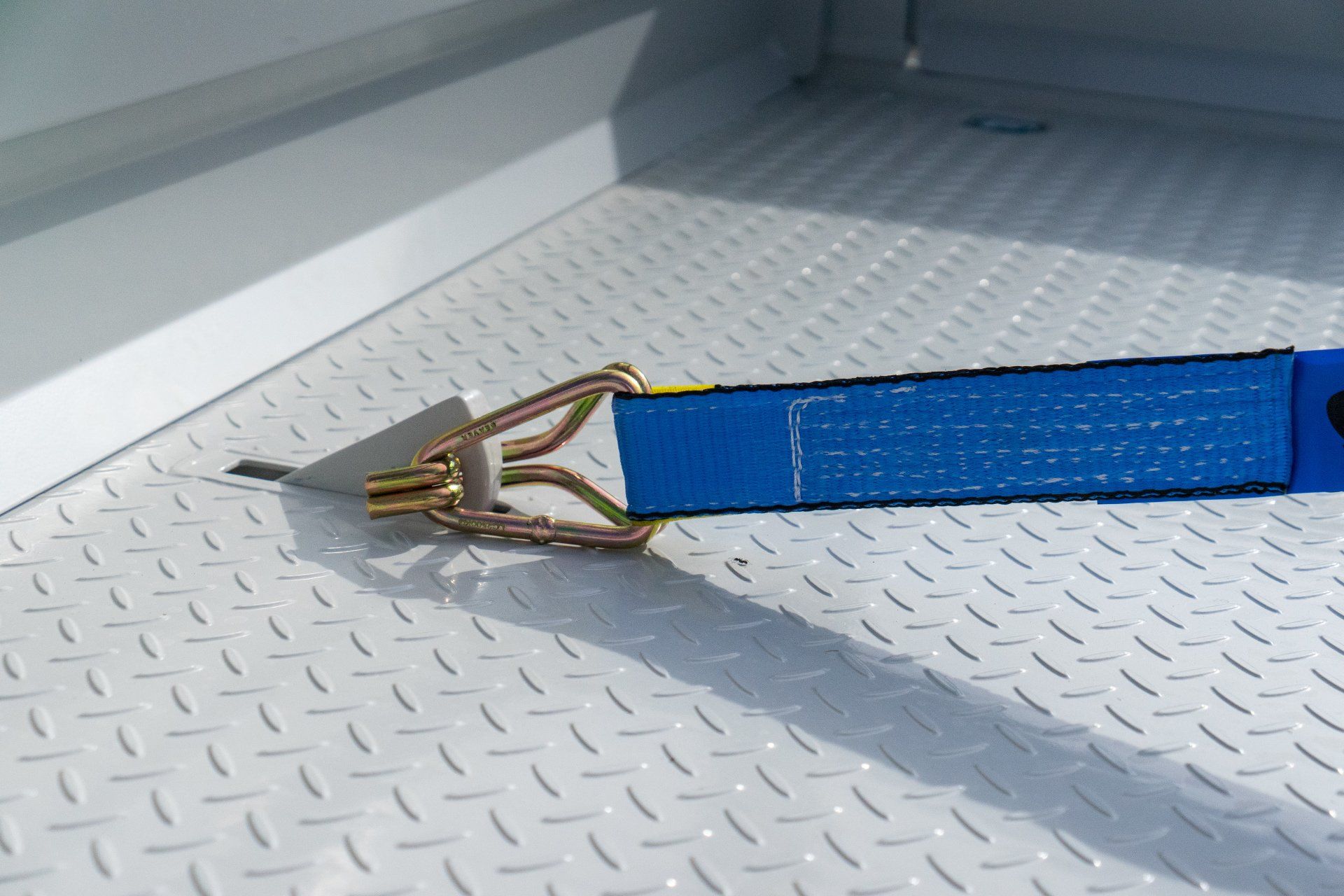

Flush Mounted Tie Downs

6 Tray mounted tie down lugs: Secures load low & tight, preserves sideboards. More available
Button
Electric Brakes

Electric Brakes on Both axles for safe and reliable stopping power
Button

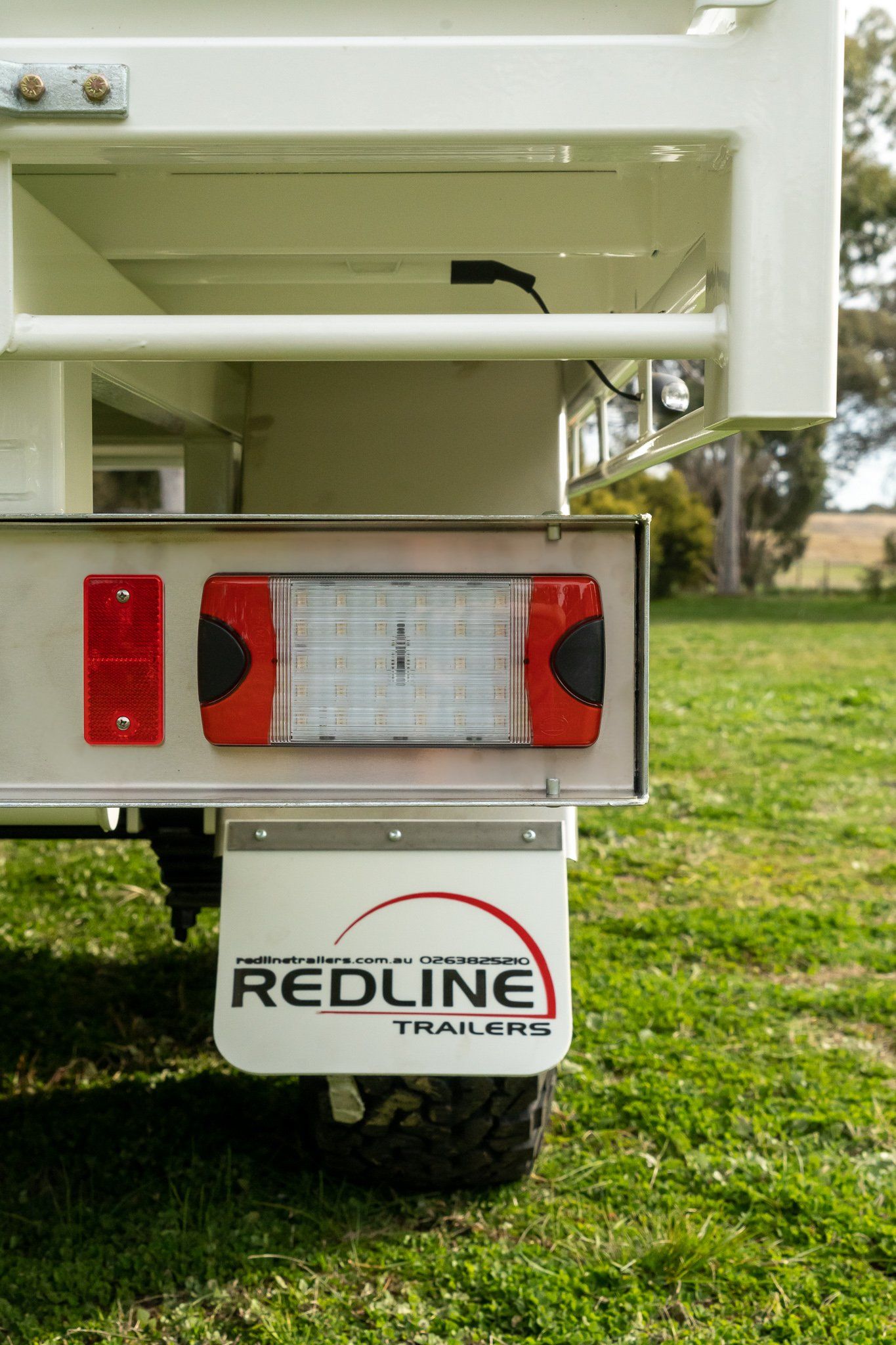

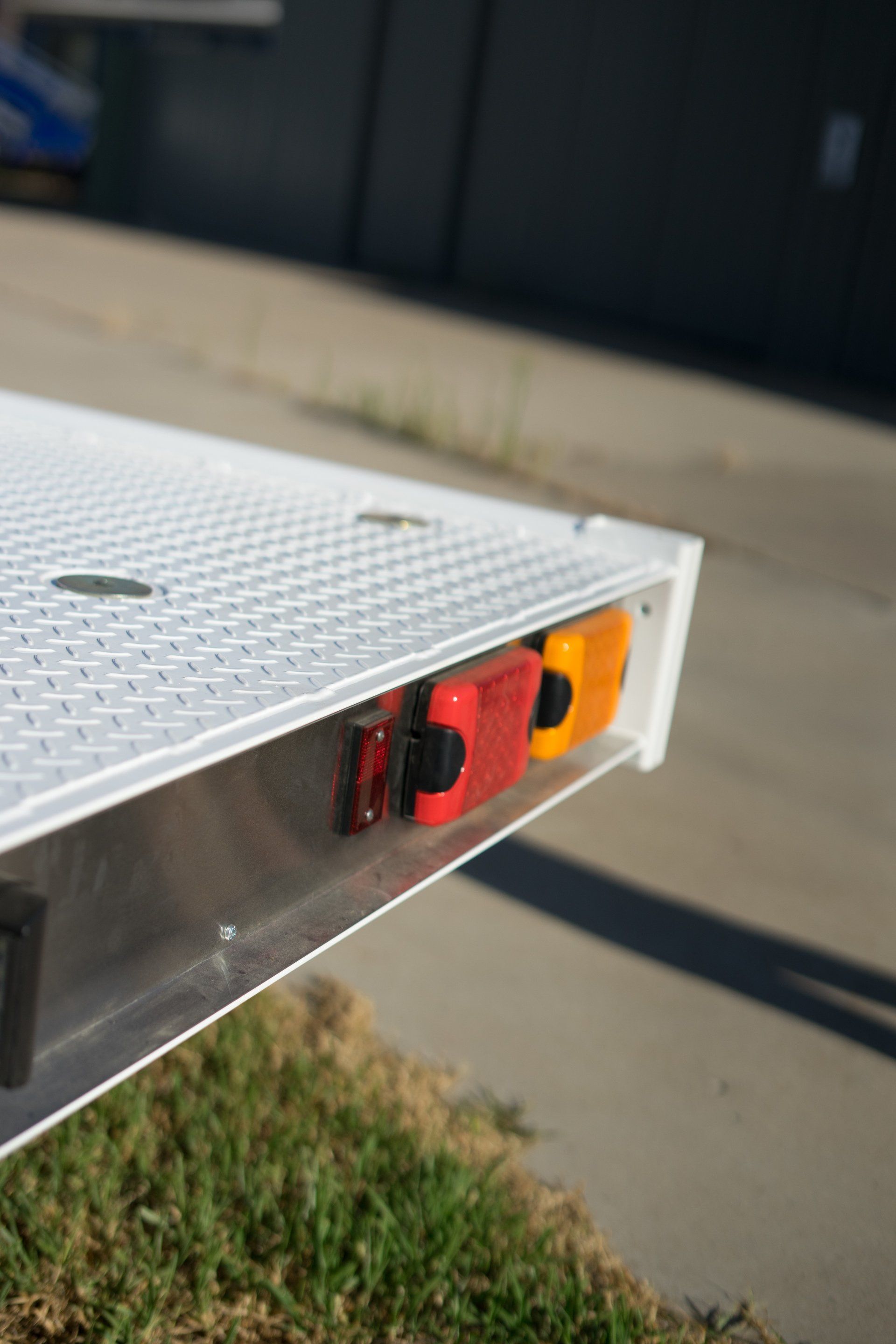

Hella LED Lights

Genuine HELLA LED light package used throughout
tail, indicator lights and clearance lights used for long lasting quality.
Button
Parking Stand

1200kg parking stand with transport mount:. A place for everything, no rattle, no lost stands.
Button
Rear Post Sockets

Sockets for Removable rear posts Lift out/ bolt in posts. Flat deck to load large items without obstructions.
Button

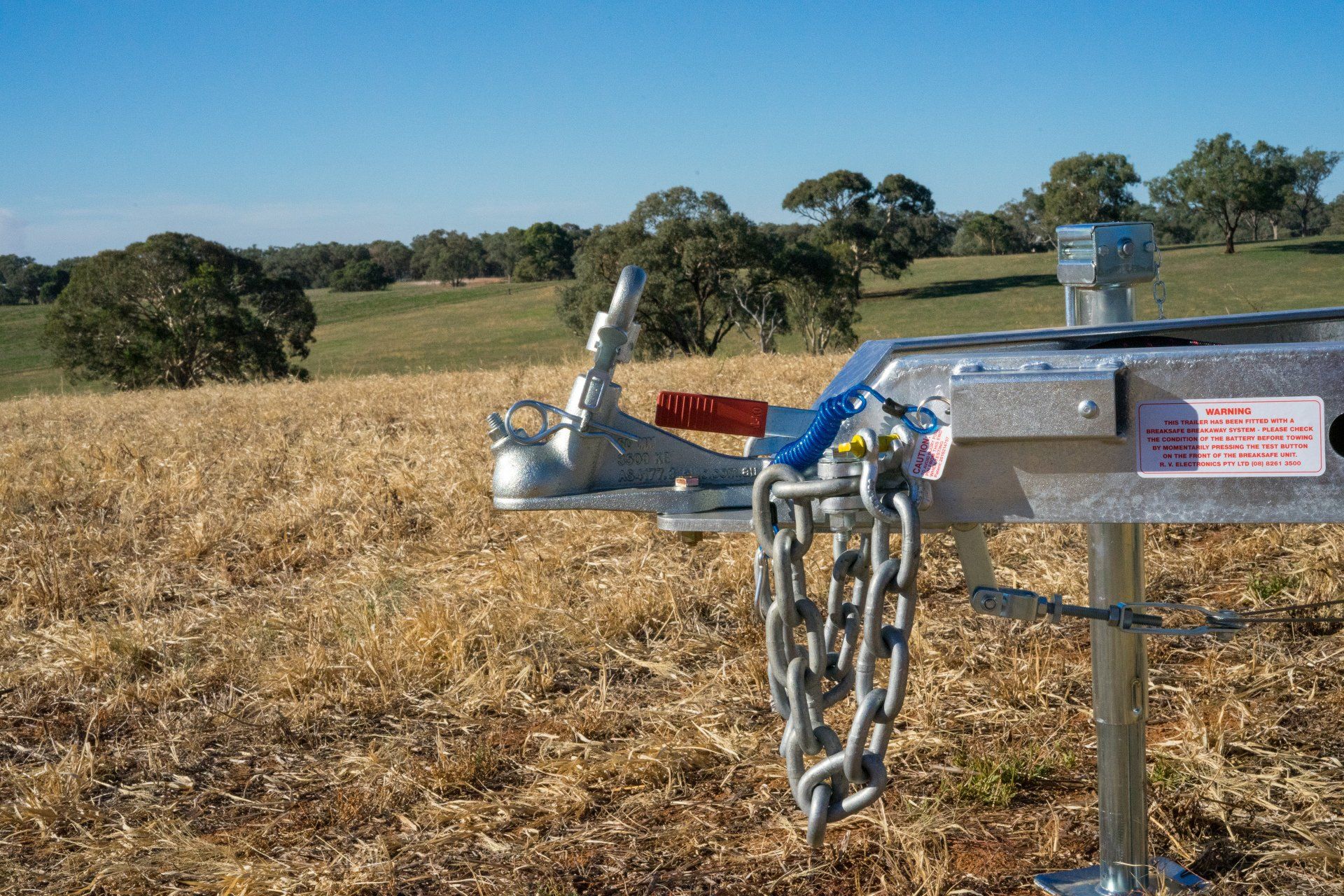

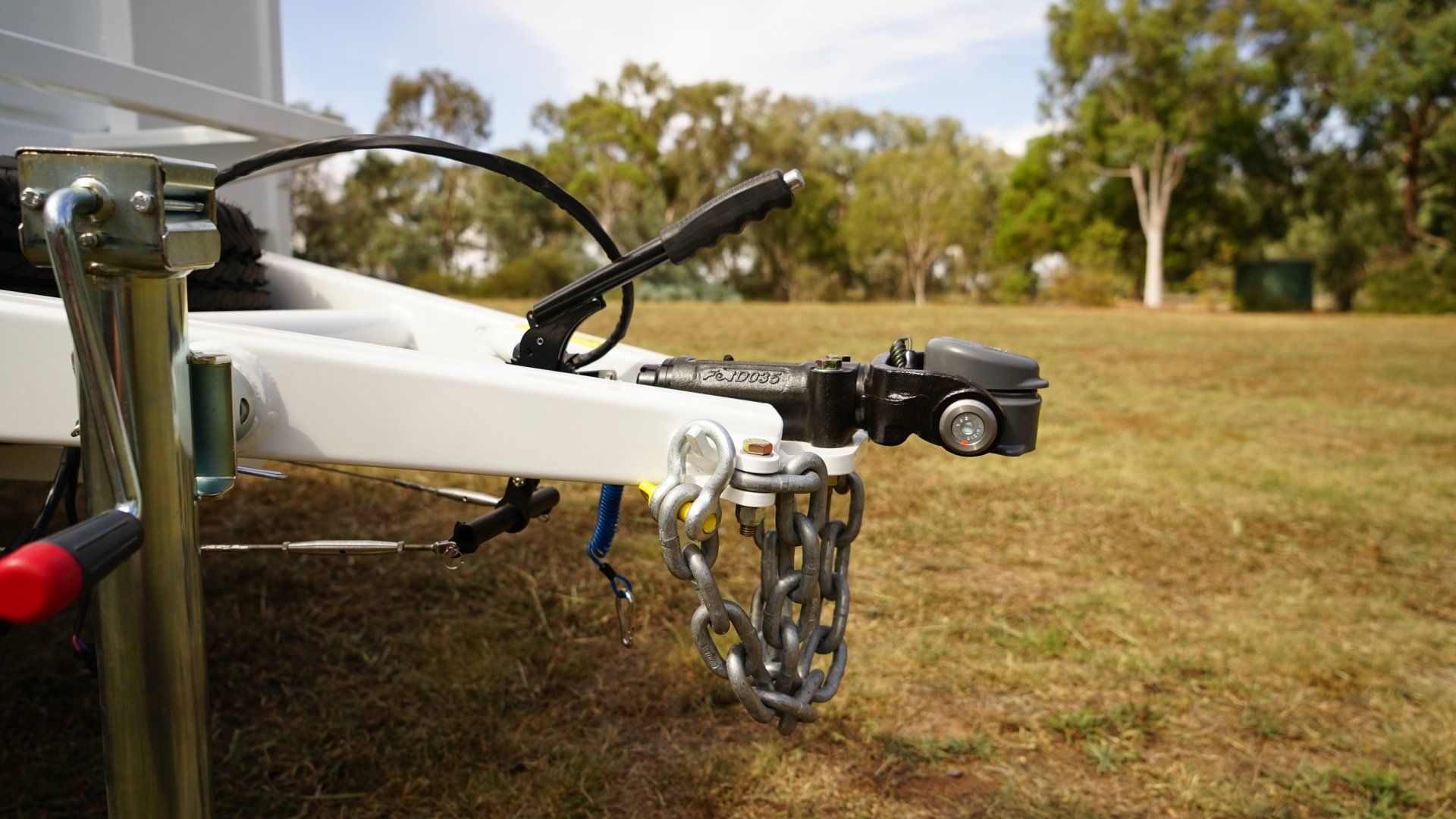

Tow Hitch Options

Other options available on request

50mm Tow Hitch

Standard for 3.0T & 3.5T ATM Trailers
Button

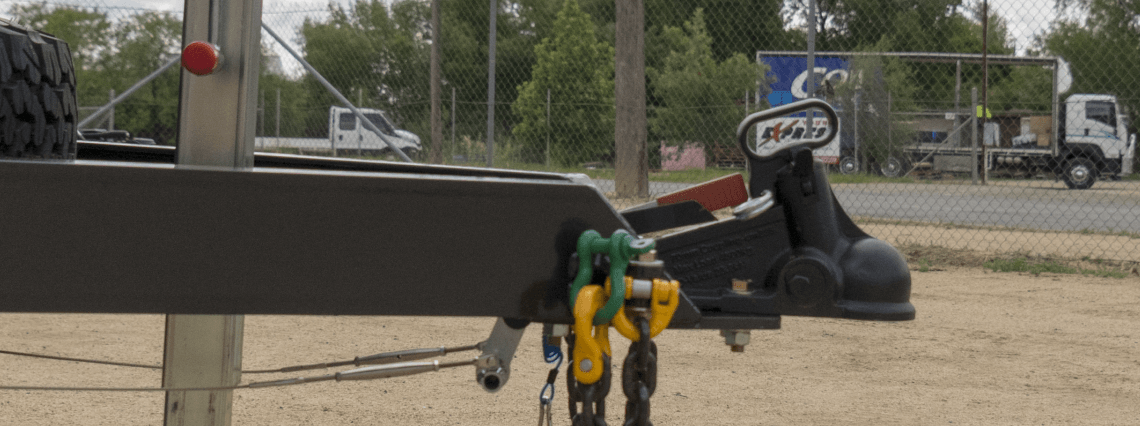

70mm tow hitch

Standard for 4.5T ATM Trailers
Button
DO35 Hitch

An Option for 3.0T &3.5T ATM Trailers
Button

Sideboard Options

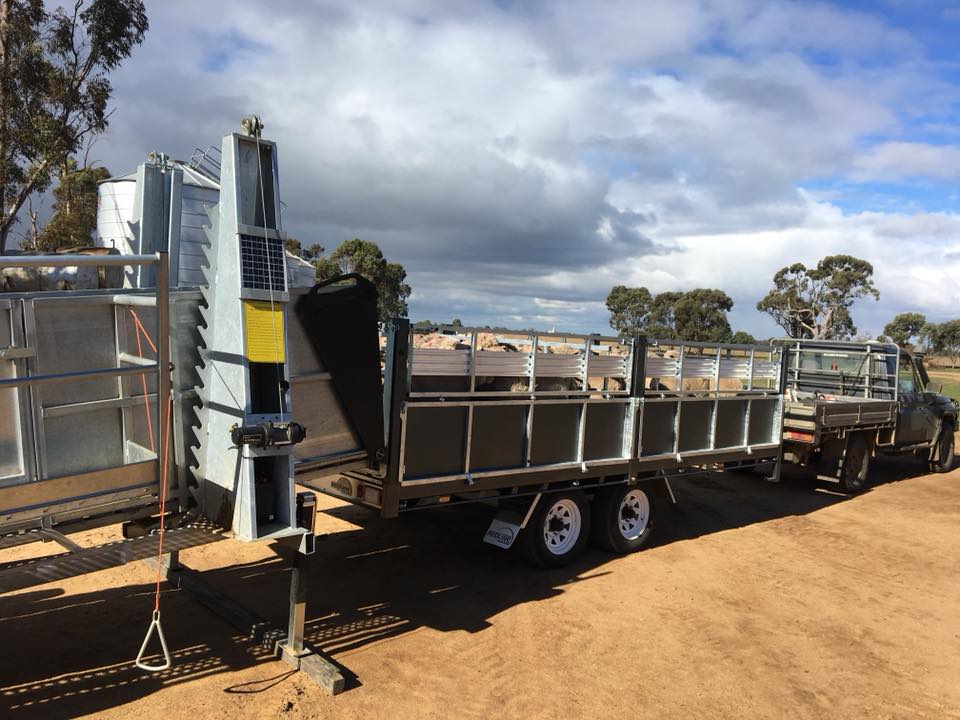

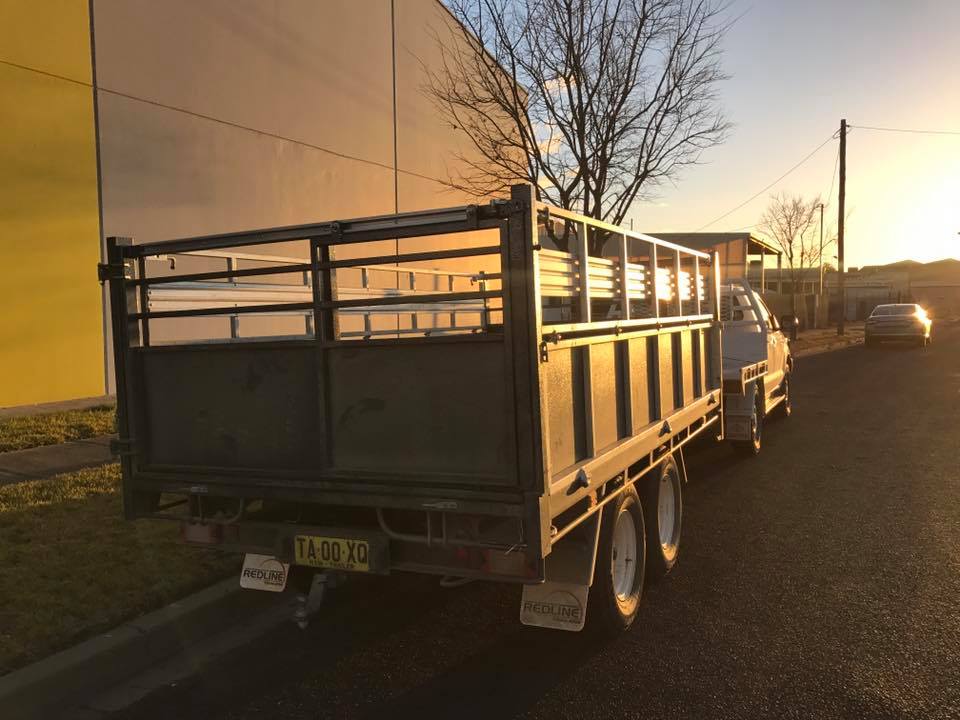

1000mm Livestock sides

W/ full width swinging rear door & Internal sliding door
Button
1200mm Livestock Sides

W/ full width swinging rear door & Internal sliding door
Button
800mm Landscaper sides

With swing rear door
Button
300mm sideboards

Drop sides
Button

Options

Ramp Options

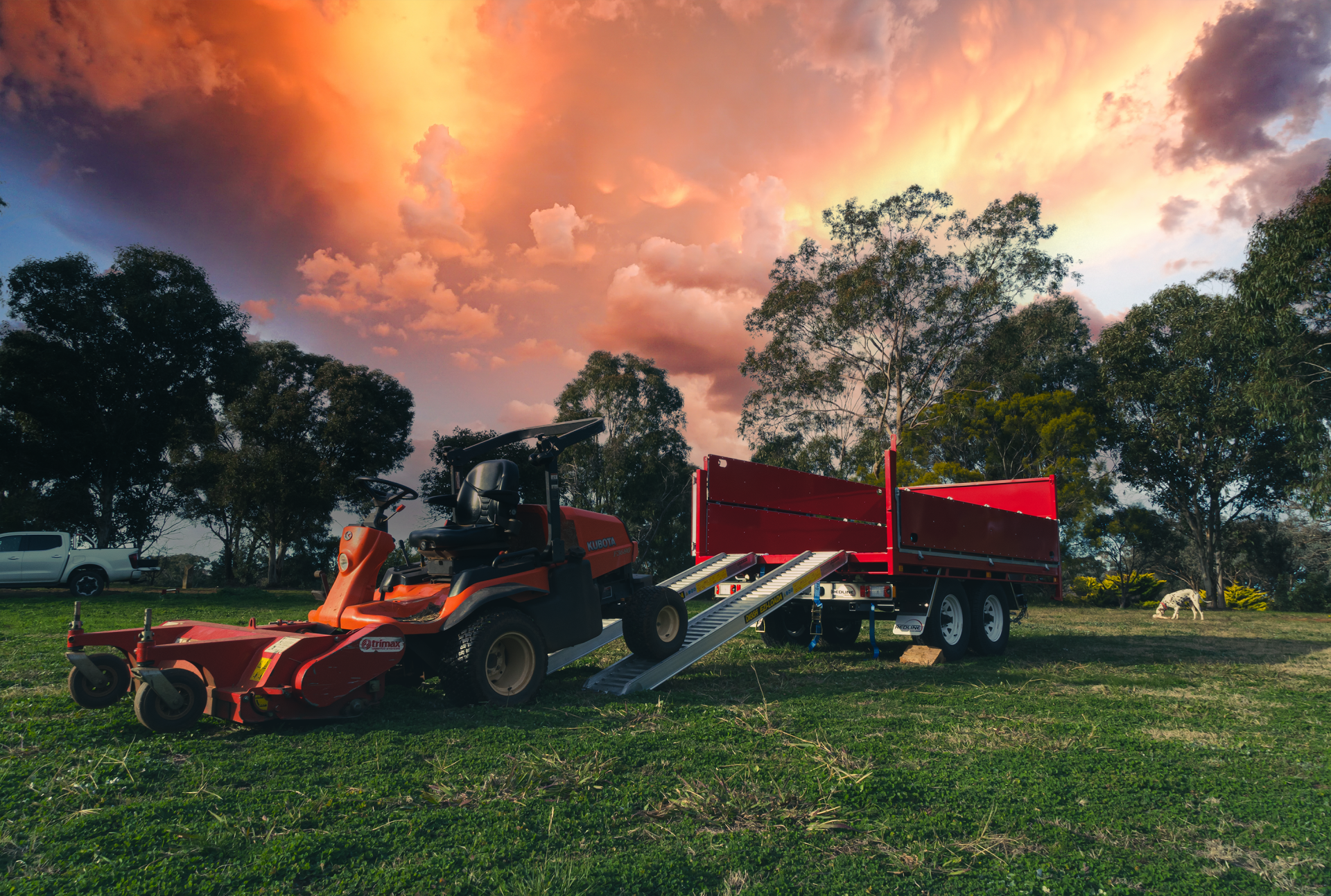

Ride-on mower 2.5 metres 290/340mm 500kg capacity Folds to 1.4m.
ATV 3 metres 350mm 20kg 1500kg
Livestock Loader 2.5 Metre x 450mm 300kg capacity
Machinery 2.5 tonne 3.3 metres 440mm 350mm 24kg
Machinery 2.5 tonne (folding) 3.3 metres 440mm 350mm 32kg

Button
Under Tray Storage Options

** Drop down light bar: *** required to allow access to under tray storage **

Alloy under tray storage box access via drop down light bar 2.5m x .9m
Under Tray Ramp racks: Slide under ramps/ lockable
Under Tray Ramps racks ** Livestock ramps **
Under tray poly water tank 10 litres clean water for hand washing
Poly lockable tool box (small)
Button
Storage Options

Stainless steel box fixed to headboard 800mm x 500mm x 500mm
Poly storage box 400 x 300 x 150

Button
Wheel Upgrade

BFG 265/75 R16 Tyres on 5 Stud Landcruiser Rims

Button
Loading Legs

Pair of stability legs to use when loading machines

Button

Tie Down Options

2T Flush Mounted Tie Downs

Button
5T Flush Mounted Tie Downs

Button
2.85T Heavy Duty Chain Downs

Button
Chain Downs

Button

Suspension Options

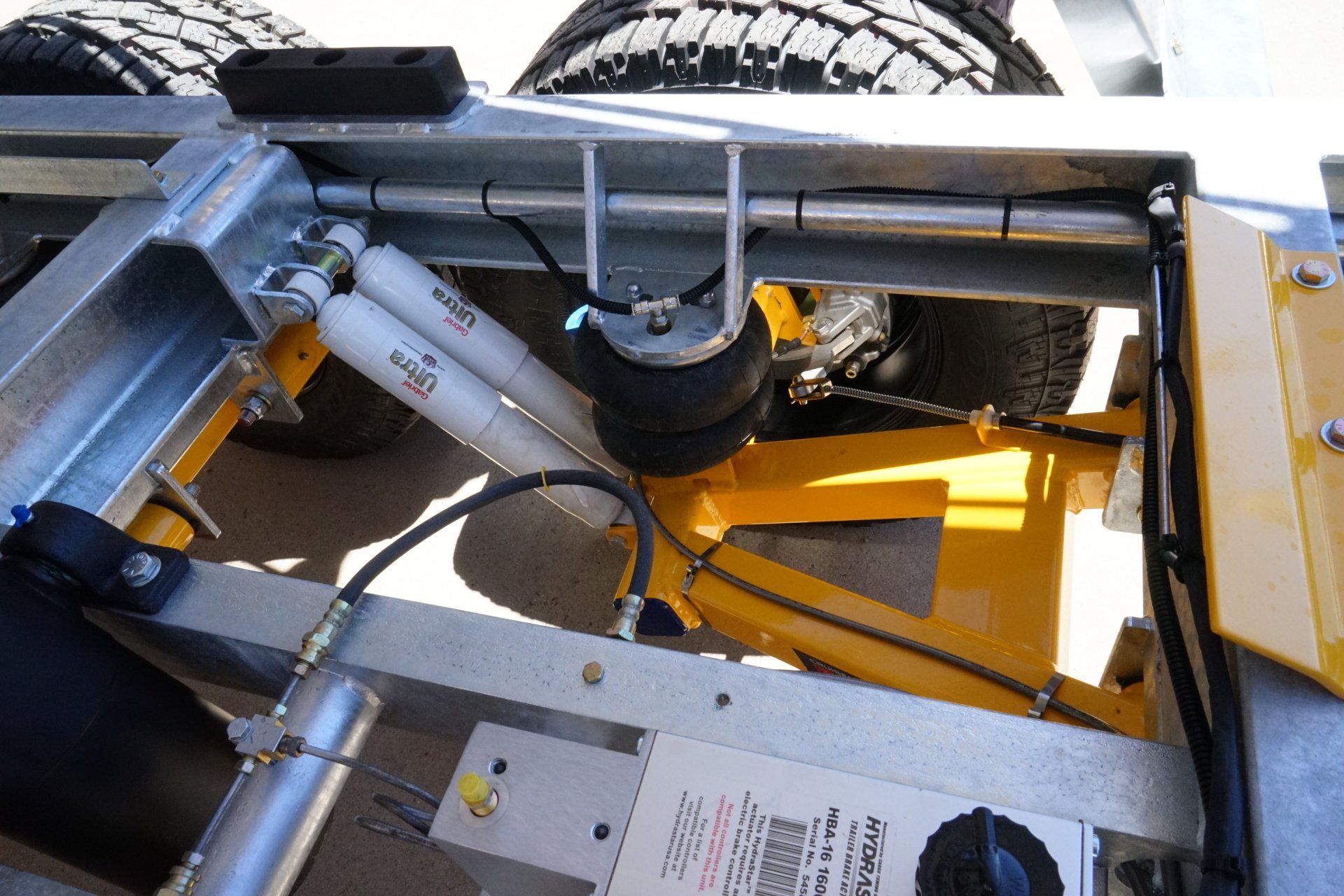

Cruisemaster independent Air Suspension

In addition to our All Australian Made 5 Tonne Rocker Roller Load sharing suspension we offer the full range of Cruisemaster XT & ATX independent Air Suspension

Button
Heavy Duty Shock Absorbers

Paired with the with our 5 Tonne Australian Made Rocker Roller Load Sharing Suspension for tougher working conditions.
Button
