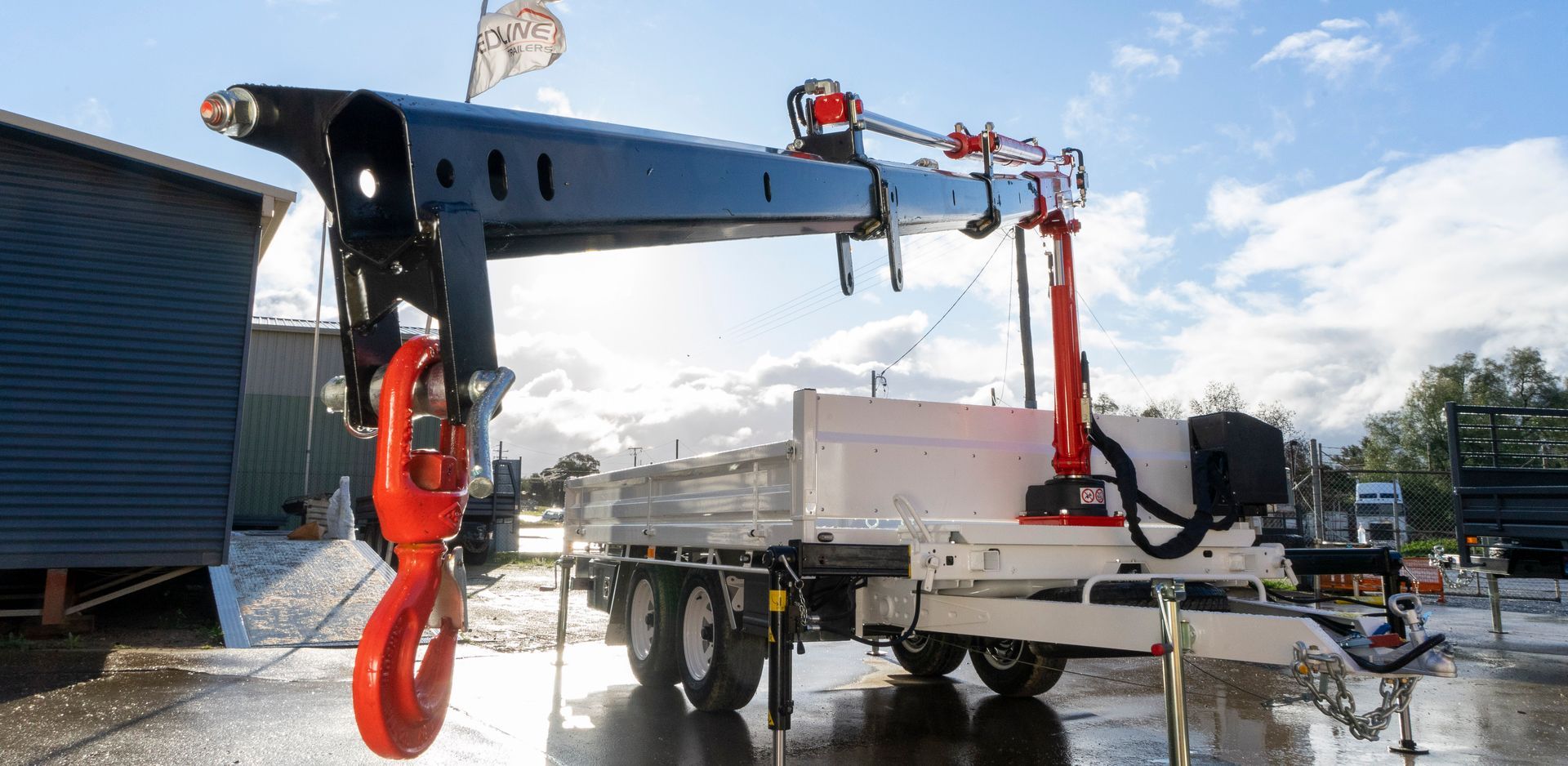

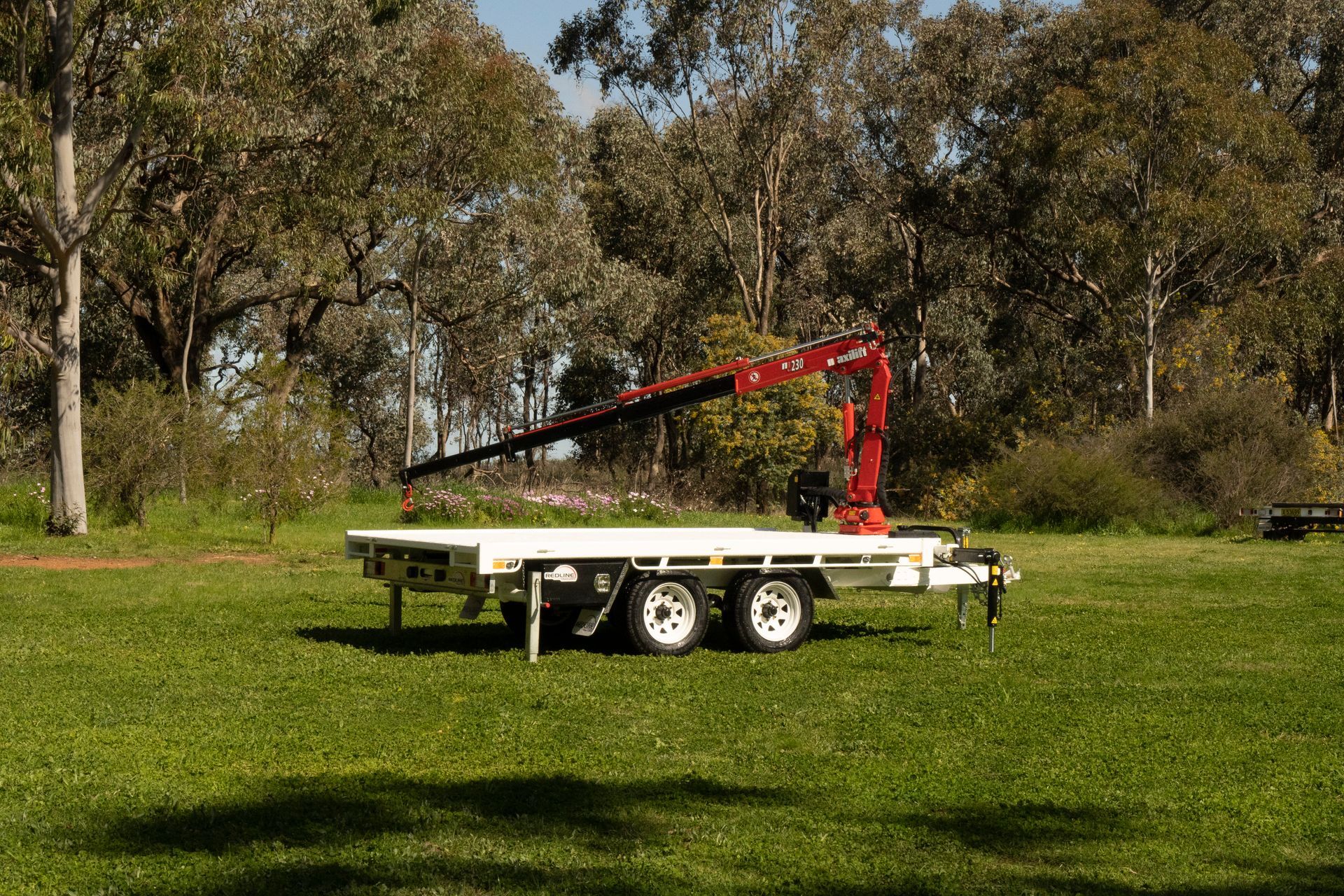

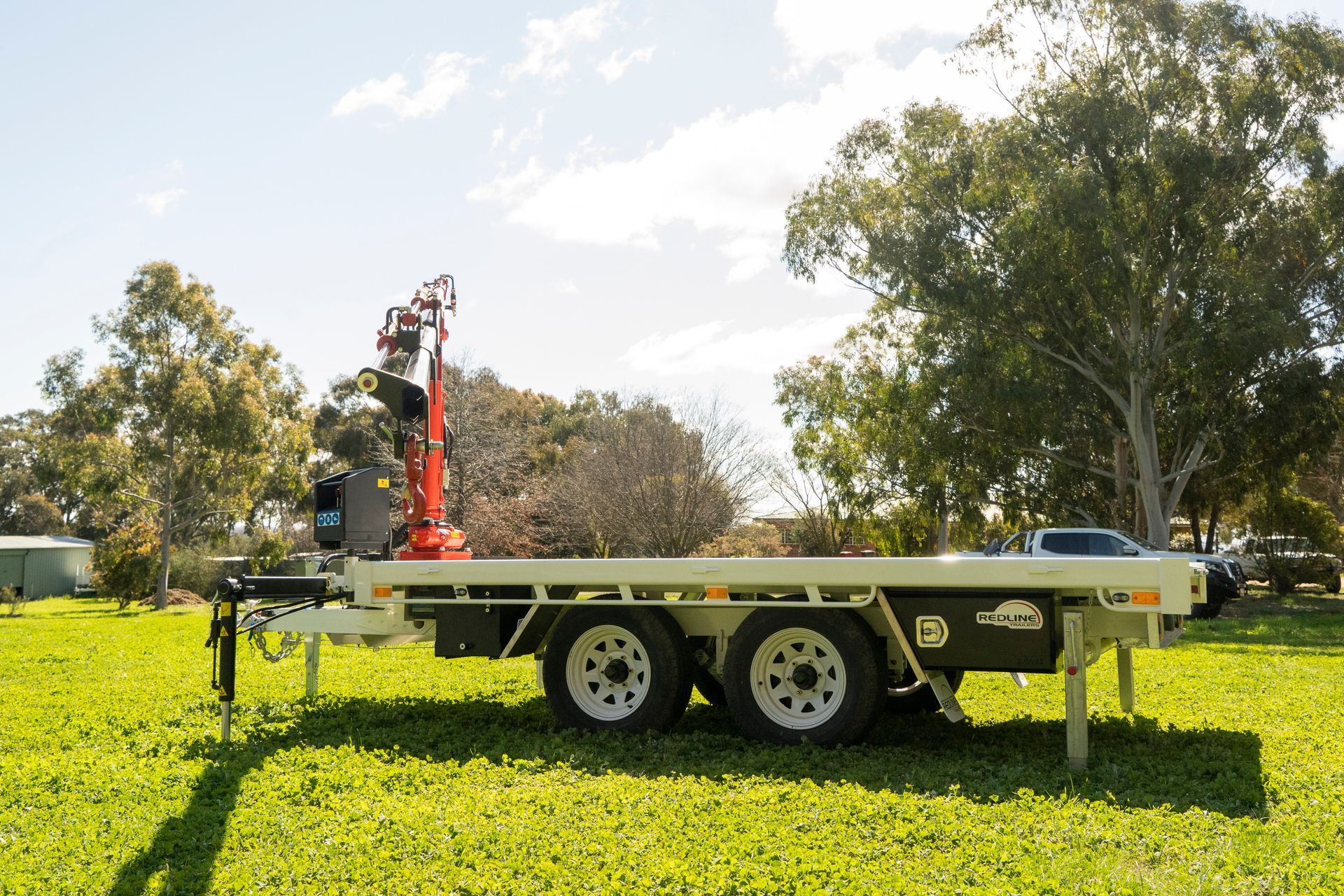

The Redline Crane Trailers
Built for serious lifting. Designed for real work.
The Redline Crane Trailer is engineered for reliability, balance, and strength. Built on our proven flat-top chassis, it combines Redline’s signature durability with a fully integrated crane system that makes heavy lifting easy, safe, and efficient. Perfect for farmers, contractors, and fleet operators who need to load and unload without a separate machine on site.
Each trailer is built to order at our workshop in Young, NSW, using Australian steel, heavy-duty axles, and precision welding. Every component is designed to handle real-world conditions and years of hard use.
Features
Key Features
- Maxilift 230.3 Crane with hydraulic extension and manual boom controls
- Rated for serious work – up to 995 kg lifting capacity at 1.3 m outreach, 415 kg at 4.35 m outreach
- 12V or 24V operation with on-board battery options
- Petrol or fully electric Power pack options
- Bosch Trailer Safety Control (optional) – ABS, sway control, lane change control
- Heavy-duty chassis built from Australian steel
- 5 tonne suspension and axle group for 3.5T or 4.5T ATM builds
- Fully welded tray with checker or smooth steel floor options

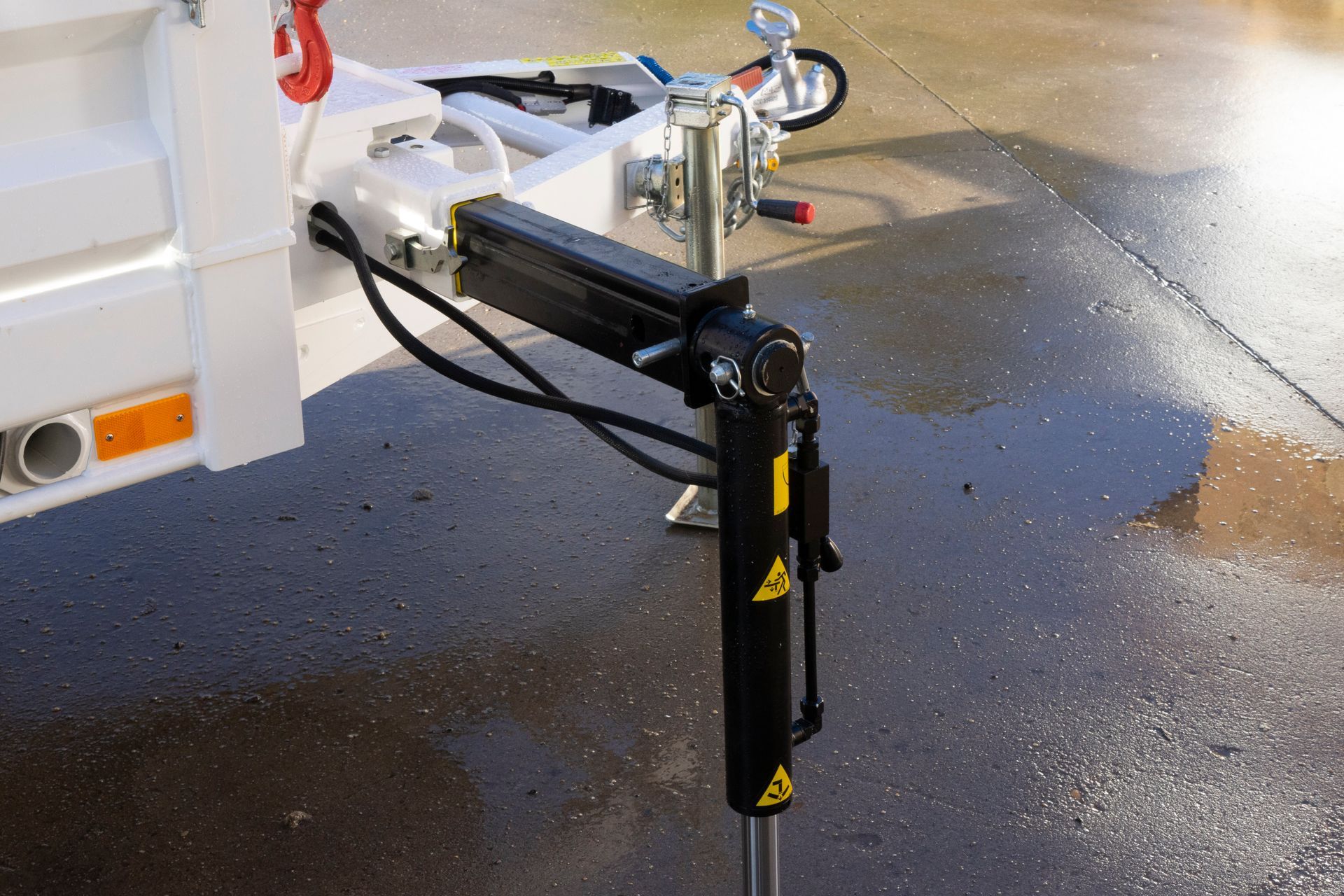

- Redline Crane Leg System – stabilises the trailer during lift
- Electric over hydraulic system available for frequent lifting applications
Applications
Ideal for:

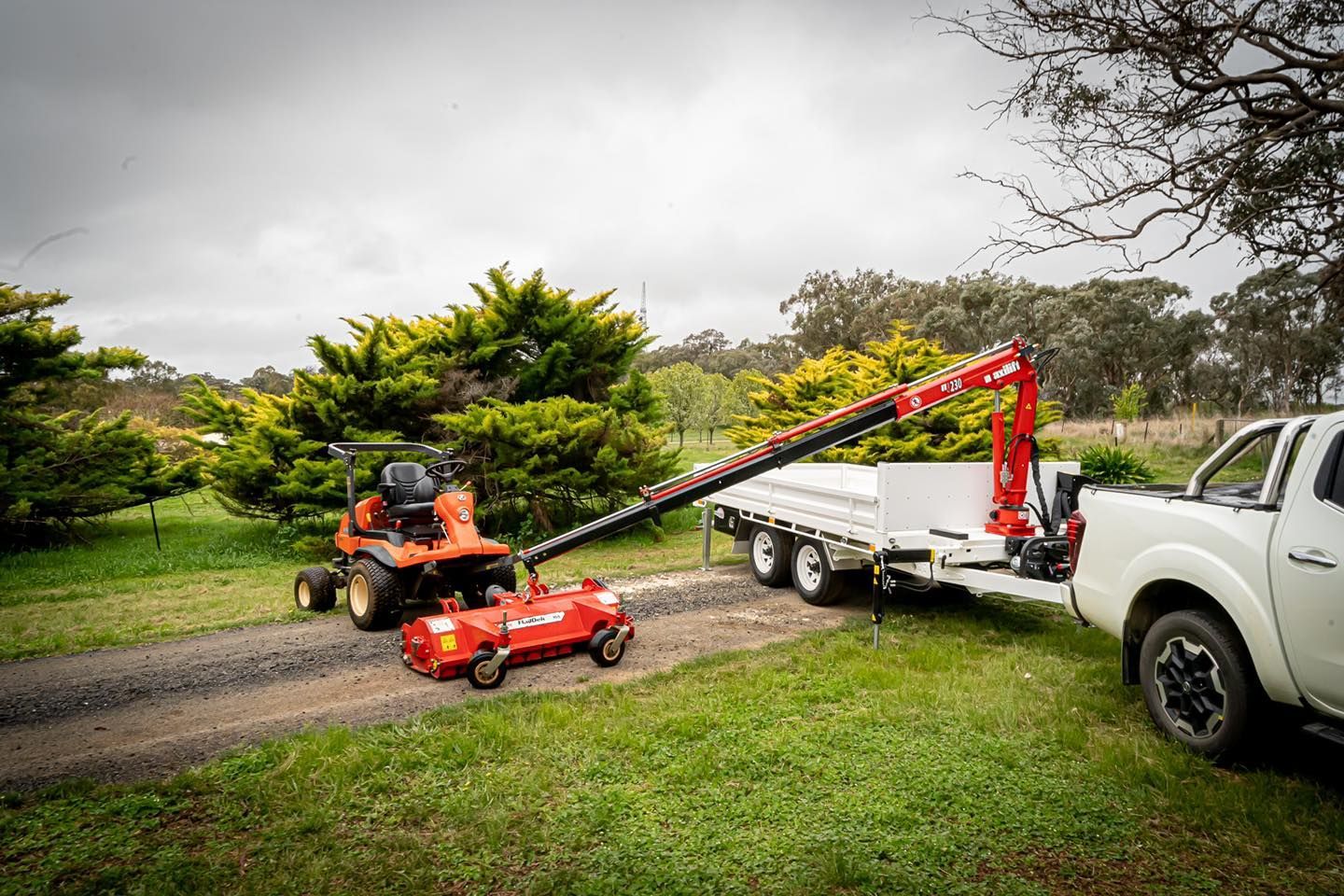

- Loading machinery, pumps, and fencing materials
- Handling chemical or fertiliser IBCs
- Farm and construction maintenance
- Service vehicles and site work where space is limited

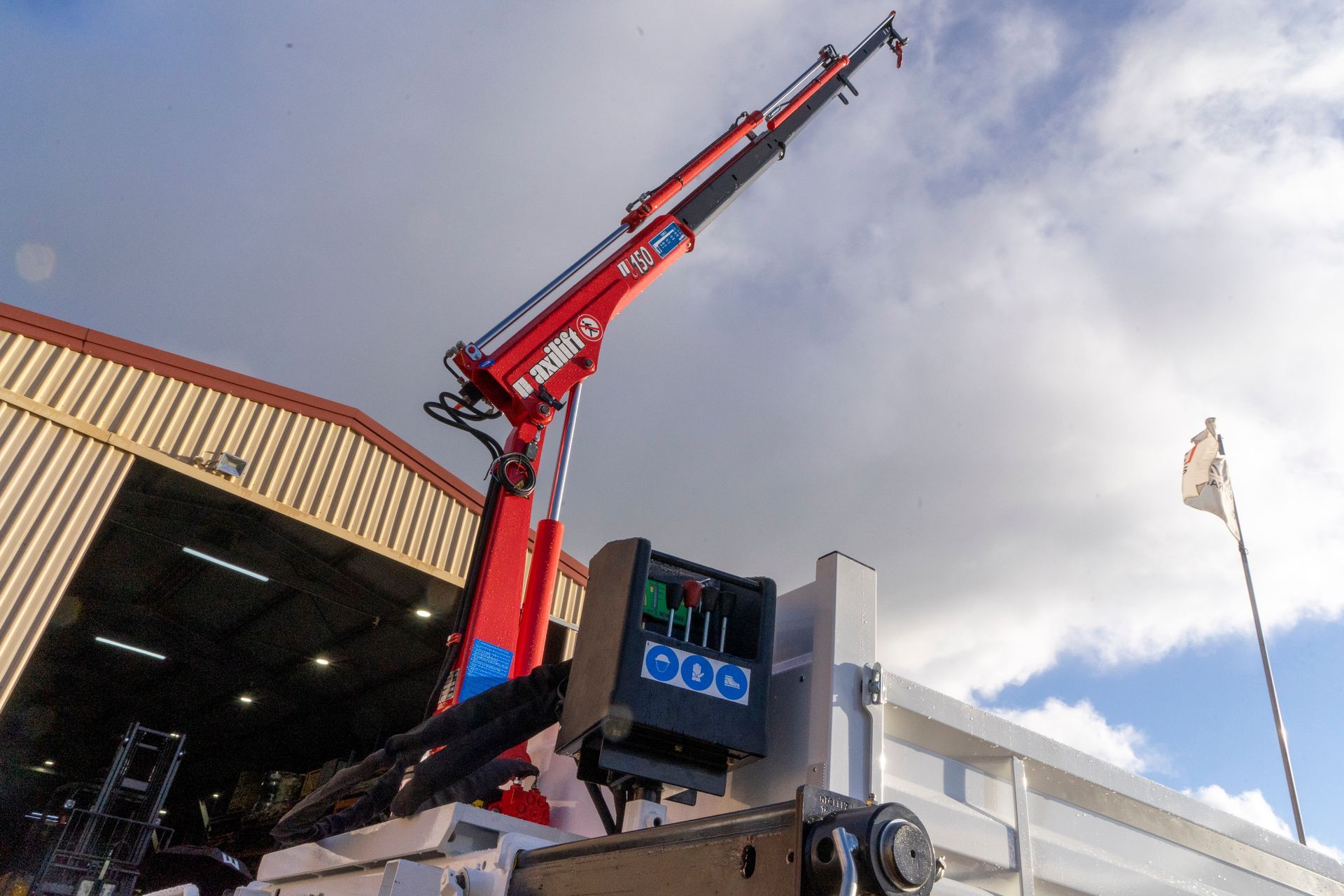

Maxilift 230.3 Crane Specifications
The Maxilift ML230.3 is a compact, powerful, and proven crane system built for utility and efficiency. Manufactured in Italy, Maxilift cranes are known for strength, reliability, and precision control. The ML230.3 integrates seamlessly with Redline’s electrical and hydraulic systems.
Performance:
- Maximum lifting moment: 21.6 kNm
- Maximum outreach: 4.35 m
- Maximum lifting capacity: 995 kg (at 1.3 m)
- Slew rotation: 330° (manual or hydraulic)
- Boom: 3 hydraulic extensions
Hydraulics & Power:
- Operates from 12V or 24V electrical systems
- Optional independent power pack with battery and charger
- Manual control levers standard; remote control available
Construction:
- Built from high tensile steel
- Low weight-to-capacity ratio for trailer integration
- Compact stowed position – minimal intrusion on tray space
Safety:
- Load limiting valve and pressure relief system
- Optional remote emergency stop
- Meets European CE standards and Australian design integration standards
